石棉墊片和無石棉墊片-Asbestos/Non-Asbestos Beater Gasket Sheet

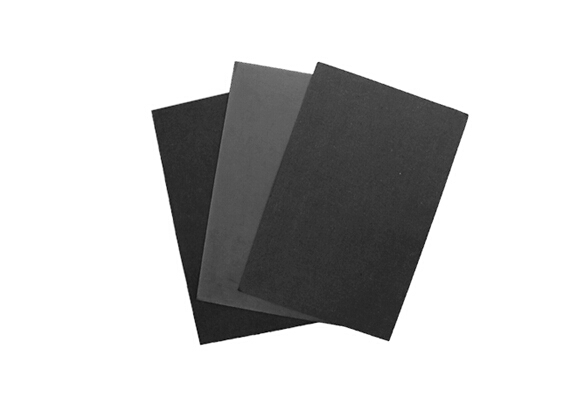

Asbestos/Non-Asbestos Beater Gasket Sheet
Asbestos Beater Sheet
It is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc., suitable for lubricating oil under temperature 200℃
Density :1.0 - 1.1 g/cm3
Tensile Strength: ≥2.5Mpa
Compressibility : ≥ 40±7
Recovery ≥ 20
.
Vulcanized Asbestos beater sheet
It has smooth face and high density compared with Asbestos beat sheet.
APPLICATION & PARAMETER: Gasket materials for explosion engine cylinder gaskets and chemical gaskets.Suitable to sealing lubricating oil at highest temperature 200℃.Asb strip is normal for filler of spiral wound gasket
Density :1.35g/cm3
Tensile Strength: ≥5Mpa
Compressibility : ≥ 20±5
Recovery ≥ 40
Non-asbestos beater sheet
Non-asbestos beater sheet is made from synthetic emulsion, plants fiber and filling material. The production is used for position of lubrication system, which has the property of good compressibility and coefficient of resilience, in addition, the inside of gasket can properly swell to meet oil, that make up of the shortcoming that procession machining precision is not enough, which affected self-sealing. Can be Vulcanized non-asbestos beater sheet with smooth faces.
PARAMETER:
Used in Automobile, farm machinery, motors, engineering etc. It can be used in oil system and water supply system at temperature 150℃
Density :1.0-1.1g/cm3
Tensile Strength: ≥ 12.7Mpa
Compressibility : ≥ 15±5
Recovery ≥ 45
Vulcanized Non-asbestos beater sheet
Density :1.2-1.4g/cm3
Tensile Strength: ≥ 12.7Mpa
Compressibility : ≥ 15±5
Recovery ≥ 45
