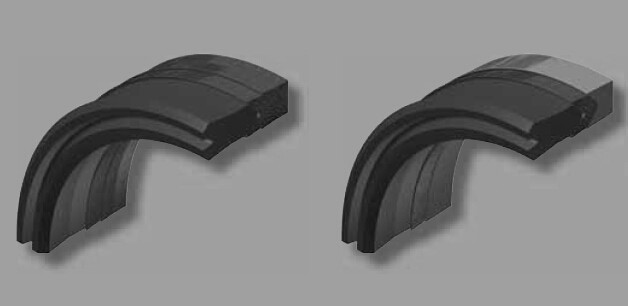

橡膠組合密封圈-James walker Lofilm multi-lip seal
Materials of construction — up to & including 250mm (9.84 in) OD
Gland ring/female adapter
Standard material: high performance acetal copolymer.
Special materials: cotton fabric proofed with natural rubber (NR), hydrogenated nitrile
(HNBR), butyl (IIR), or fluorocarbon (FKM).
Intermediate rings
Standard material: cotton fabric proofed with a blend of synthetic rubbers.
Special materials: cotton fabric proofed with natural rubber (NR), hydrogenated
nitrile (HNBR), butyl (IIR), or fluorocarbon (FKM). Also solid rubber or PTFE.
Header ring
Standard material: abrasion resistant medium nitrile (NBR) rubber.
Special materials: ethylene propylene
(EPM) or fluorocarbon (FKM) rubber for
use with certain phosphate ester fluids.
Materials of construction above 250mm (9.84 in) OD Gland ring/female adapter
Standard material: cotton fabric proofed with a blend of synthetic rubbers. Special materials: cotton fabric proofed with natural rubber (NR), hydrogenated nitrile (HNBR), butyl (IIR), or fluorocarbon (FKM).
Intermediate rings
Standard & Special materials: as for sizes up to and including 250mm (9.84 in) OD.
Header ring
Standard & Special materials: as for sizes up to and including 250mm (9.84 in) OD.
Media capabilities
Standard materials are suitable for use with most mineral-based hydraulic fluids, and most fire-resistant fluids of the water/ oil or water/glycol types at temperatures up to 100°C (212°F). Also resistant to air, water and most lubricating oils and greases. Where fire-resistant fluids are used, it is essential to advise our Technical Support Team of the type and designation due to the effects that can occur with different grades.
Special materials considerably extend the range of application in terms of temperature, fluid compatibility and abrasion resistance. Please ask our Technical Support Team for further information.
