德國(guó)5型特康埃落特-TURCON EXCLUDER 5

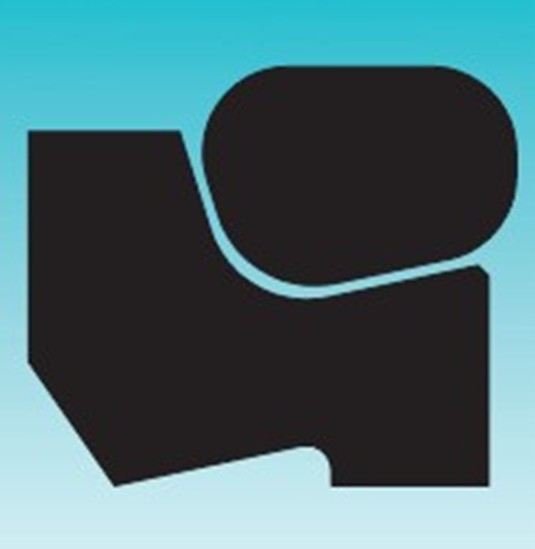

Double-Acting - O—Ring-Energized Scraper
Material : Turcon and Zurcon
Materials
The following material combination has proven effective for most applications:
Excluder:
O—Ring: NBR, 70 Shore A
Set Code: T46N
Advantages
- Outstanding sliding properties
- Stick-slip-free (Turcon material)
- Tough scraper for heavy-duty operation
- Can compensate for deflections of the piston rod or plunger
- Very good scraping effect even against firmly adhered dirt.
- Very good scraping effect from the inside against the residual oil film adhering to the surface of the piston rod
- Very high resistance to hydraulic media
- Available for all diameters up to 102.000 inches (2,600
mm) (Turcon), up to 86.000 inches (2,200 mm) (Zurcon)
Technical Data
Velocity: 50 ft/s (15 m/s) for Turcon materials
6.5 ft/s (2 m/s) for Zurcon materials
Temperature: -49°F to +392°F (-45°C to +200°C)
(Turcon)
-49°F to +212°F (-45°C to +100°C)
(Zurcon)
(depending on O—Ring material)
Media: Mineral oil-based hydraulic fluids,
flame retardant hydraulic fluids,
environmentally safe hydraulic fluids
(bio-oils), water, air and others,
depending on the scraper and
O—Ring material
Ordering code :
WEE101500
WEE101563
WEE101625
WEE101687
WEE101750
WEE101812
WEE101875
WEE101938
WEE102000
WEE102125
WEE102250
WEE102375
WEE102500
WEE102625
WEE202750
WEE202875
WEE203000
WEE203125
WEE203250
WEE203375
WEE203500
WEE203625
WEE203750
WEE203875
WEE204000
WEE204125
WEE204250
WEE204375
WEE204500
WEE204625
WEE204750
WEE204875
WEE205000
WEE205125
WEE205250
WEE205375
WEE305500
WEE305625
WEE305750
WEE306000
WEE306250
WEE306500
WEE306750
WEE307000
WEE307250
WEE307500
WEE307750
WEE308000
WEE308250
WEE308500
WEE308750
WEE309000
WEE309250
WEE309500
WEE309750
WEE310000
WEE310500
WEE311000
WEE311500
WEE312000
WEE312500
WEE313000
WEE313500
WEE314000
WEE314500
WEE315000
WEE315500
WEE416000
WEE416500
WEE417000
WEE417500
WEE418000
WEE418500
WEE419000
WEE419500
WEE420000
