綠色斯特封-Hunger GODI-SP rod seal

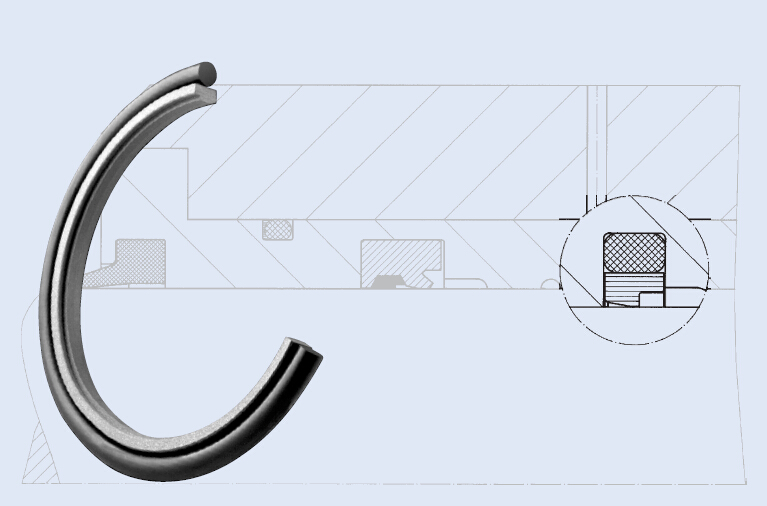

The walle sealing slide and O-ring seal type GODI-SP is a single-acting rod seal with stepped profile to increase sealing efficiency.
In general the GODI-SP is used with a secondary seal (tandem arrangement).
The geometry of the slide ring profile prevents pressure build up between seals. The sealing principle is the same as the GODI.
The GODI-SP is also suitable for installation grooves in accordance with DIN ISO 7425-2.
Fields of Application
Standard low friction single-acting seal. Suitable for installation grooves in accordance with DIN ISO 7425-2.
Application range :
Pressure(bar) : 360
Temperature (C): -35+100
Sliding Speed(m/s):1
Fluid: standard hydraulic oils, oil-water, water-glycol
Standard Materials
Elastic ring : NBR , FPM, FMVQ, EPDM
Slide Ring: PTFE-Bronze, various PTFE-compounds
