氟橡膠旋轉(zhuǎn)格萊圈-Hunger GODA-SPE piston seals

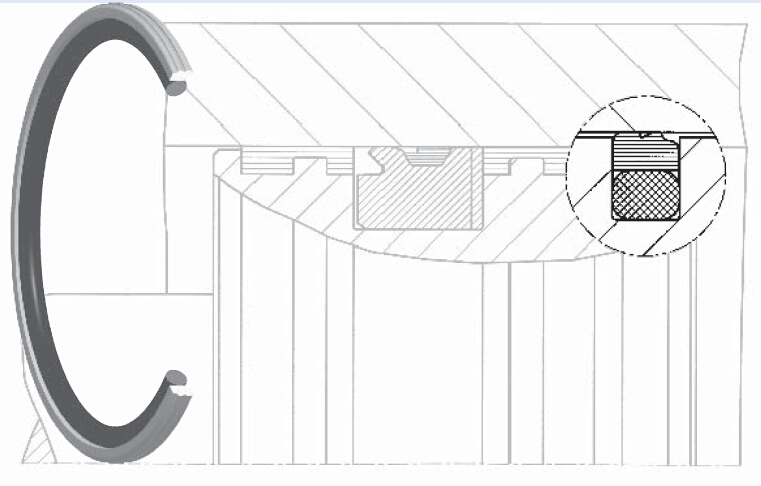

The Walle sealing slide and O-ring seal type GODA-SPE is
a single acting seal with pressure releasing profi le to
one side. The pressure discharge reduces the friction
in pressurized condition and allows the seal to react
more sensitive to pressure changes.
The seal additionally has the ability to convey leakage
oil which may arise from the seal gap back into the
system.
The GODA-SPE is available in the common installation
dimensions, like e.g. for installation grooves in accordance
with DIN ISO 7425-2.
Technial data:
Pressure(bar):360
Temperature (C): -35~+100℃
Speed(m/s): 1
Standard Materials
Slide ring : PTFE bronze
Elastic-Ring: NBR or FKM,FPM,FMVQ,EPDM
Sliding surface : 0.3-0.5
Groove Base : 0.8
Groove Side : 3.2
