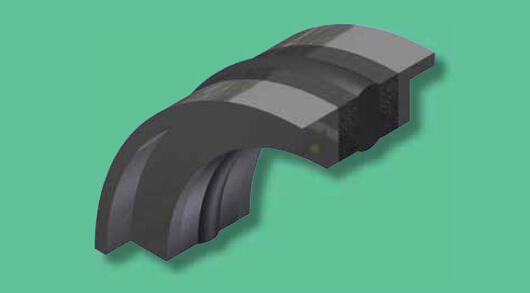

Solosele液壓密封件-James walker Solosele sw

Operating capabilities

• Maximum operating pressure: 42MPa (6092psi).

• Temperature range (standard materials): -20°C to +100°C (-4°F to +212°F).

• Temperature limits (special materials): down to -45°C (-49°F) with low nitrile

(NBR); or up to +200°C (+392°F) with fluoroelastomer (FKM).

• Maximum surface speed: 0.5m/s For higher speeds please consult our Technical Support Team.

Typical applications

Split piston heads in double-acting hydraulic applications of medium to heavy duty. The compact design of this seal recommends it for applications where space is at a premium, especially under side loads and where clearances are large.

Materials of construction

Elastomeric core

Standard material: medium nitrile (NBR).

Special materials: low nitrile (NBR), or fluorocarbon (FKM).

Anti-extrusion elements

Standard material: cotton fabric proofed with blend of synthetic rubbers.

Special materials: cotton fabric proofed with blend of synthetic rubbers for use with seal core of low nitrile (NBR). Fabric proofed with fluorocarbon (FKM) for use

with seal core of fluorocarbon (FKM). Wear/bearing rings Polyacetal (POM).
