雙階梯防塵圈-Hunger wiper ring AIST

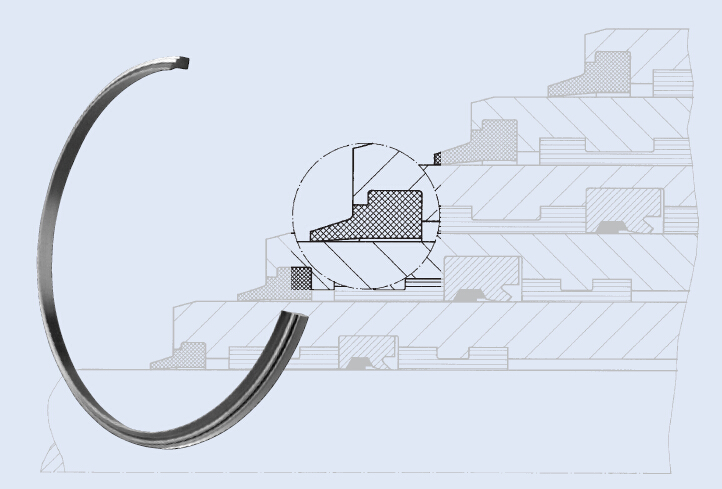

The profile of the walle sealing AIST wiper with step profile prevents ingress of dust, dirt, metal particles, sand grains and other contaminants from entering the cylinder. It is built into the front of the cylinder to protect the seal and bearing system. The AIST is easily snapped into a simple installation groove and can be used with all mineral oils.
Material:
Wiper ring : NBR/Hytrel, PTFE
Temperature range : -35~100℃
Sliding speed ：1m/s
Sliding surface : 0.1-0.3
Groove base ： 0.8
Groove Sides : 3.2
Fitting
The wiper is bent into a kidney shape and inserted
into the groove.
